4'' GaN wafer

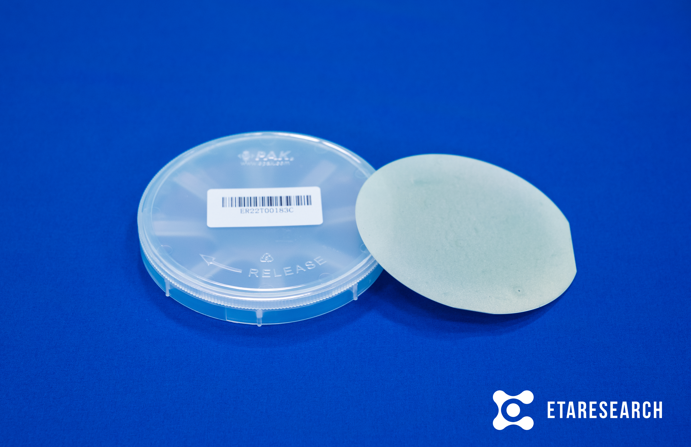

eta research 4 inch GaN wafer.png


4 inch GaN wafer substrate




Diameter100.0mm ± 0.3mm
Thickness450 ± 30 μm
Orientation(0001) Ga-face c-plane (standard); (000-1) N-face (optional)

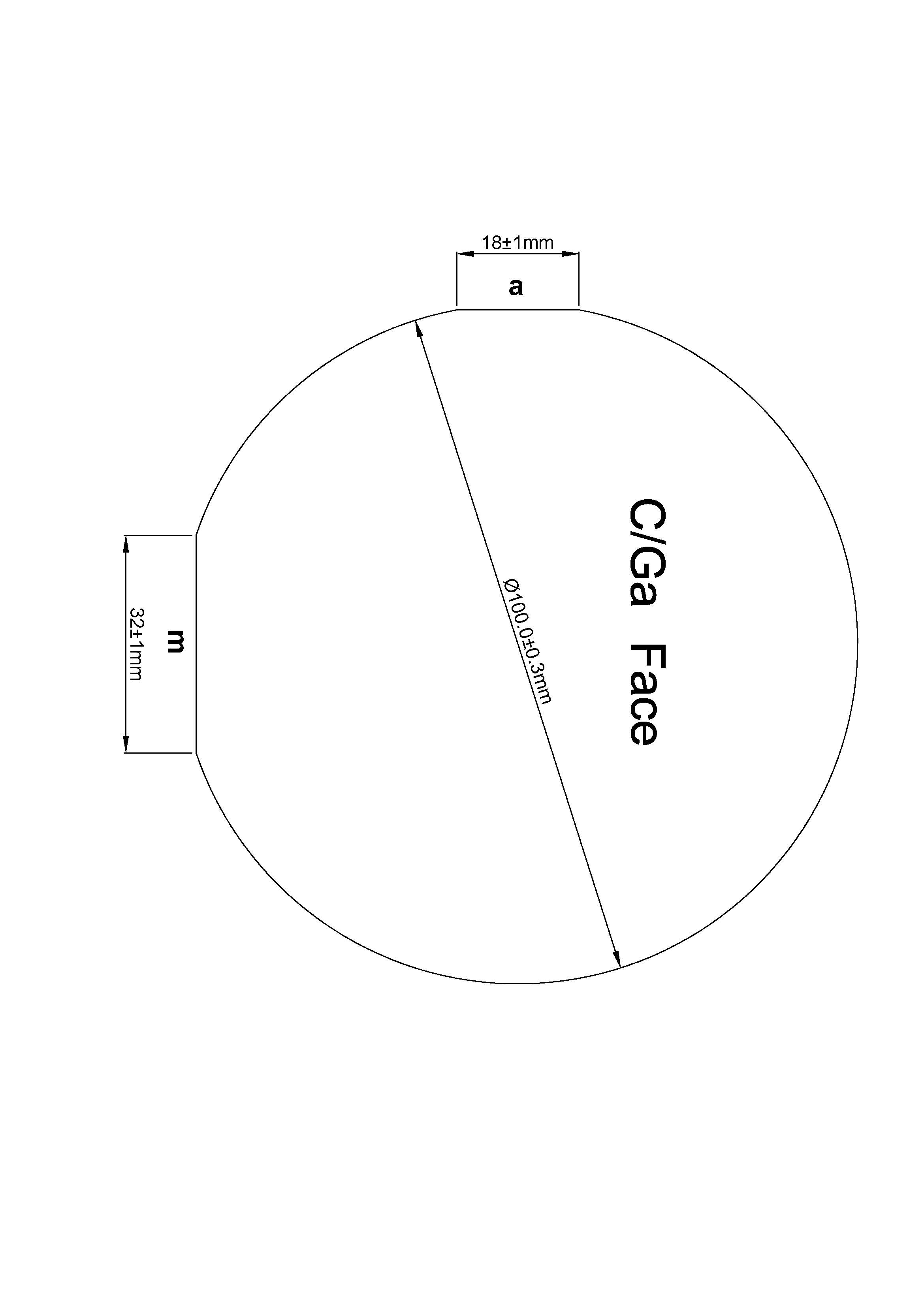

Minor Orientation Flat Length18.0 ± 1 mm
TTV≤ 30 μm
Warp≤ 80 μm
Bow-40 to 20 μm
DopingResistivity
N-type (Silicon)≤ 0.02 ohm-cm
UID≤ 0.2 ohm-cm
Semi-Insulating (Carbon)> 1E8 ohm-cm
